Hydrotechnik speed sensor DS03 Introduction
 |
Speed sensor DS03 |
| Hydrotechnik in china | |
| Speed sensor DS03 data download | |
Rotational speed measurement for many applications: The hydrotechnik's rotational speed sensor RS 110 uses pulsating red light (LED) refl ected by a special tag at the rotating target. By using a polarisation fi lter, only the refl ected light impulses are evaluated, disturbing refl ections (e.g. unevenness of the surface, bright metal parts, keyways or high-contrast areas) are not detected. This achieves a reliable rotational speed measurement from distances between 50 mm and 4 m*.25 refl ection tags are included. Enter the number of used reflection tags as calibration value into the measuring instrument. |
|

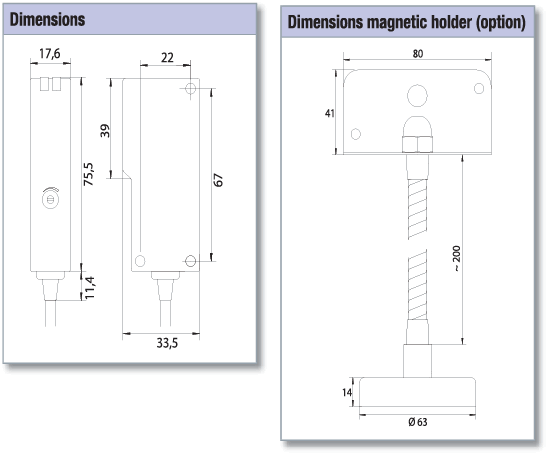

Hydrotechnik Speed sensor DS03 technical data
| Measuring principle | auto-collimation |
| Light source | power LED with visible red light |
| Supply voltage Ub | 10 ... 30 VDC |
| Ripple | < 5 Vss |
| Current consumption | < 30 mA |
| Output current max. | < 100 mA |
| Response time | 500 μs |
| Switching sequence | 1,000 Hz |
| Range | 50 ... 500 mm (with standard refl ectors)* |
| Protection type | IP 67 |
| Signal repetition frequency | max. 500 Hz |
| Output signal | frequency (rectangular signal) / 4 ... 20 mA |
| Electrical measuring connector | 5 pole device connector, M16 x 0.75 |
| Environmental temperature | -40 ... +60 °C |
| Storage temperature) | -40 ... +75 °C |
| Weight | 141 g |
Hydrotechnik Speed sensor DS03 Electrical connector
| Pin assignment | frequency output | 4 ... 20 mA output |
 |
Pin 1 = signal + | Pin 1 = signal + |
| Pin 2 = – Ub / GND | Pin 2 = signal – / GND | |
| Pin 3 = + Ub | Pin 3 = + Ub | |
| Pin 4 = free | Pin 4 = free | |
| Pin 5 = free | Pin 5 = free |
Hydrotechnik Speed sensor DS03 part-NO.
| Measuring range | Weight | Order number |
| Frequency | 140g | 3130-02-01.00 |
| 4 ... 20 mA | 320g | 3130-06-01.00 |
