Torque sensor

Hydrotechnik in china

Hydrotechnik Torque sensor for many applications:

Highly accurate torque sensor, equipped with a cylindric shaft with feather keys on both ends.
It is available for several measurement ranges and is designed for continuous rotational speed of 1,500 to 2,000 rpm.

Hydrotechnik Torque sensor technical data
Measuring principle	rotating sensor with friction ring
Output signal	4 ... 20 mA
Nominal characteristic value	2 mV/V
Electrical measuring connector	5 pole device connector, M16 x 0.75
Mechanical measuring connector	cylindric shaft with feather keys
Protection type (EN 60529 / IEC 529)	IP 50
Signal type	three wires
Supply voltage Ub	8 ... 24 VDC
Current consumption	< 50 mA
Error limit	0.1 % of fi nal value
Working torque	120 % of fi nal value
Limit torque	130 % of fi nal value
Breaking torque	250 % of fi nal value
Factor range DIN 50100	70 % (peak – peak)
Maximal rotational speed	2,000 U/min
Twisting angle	0.5 ° at nominal torque
Reproducability	± 0.05 %
Lifetime of brushes	5 x 10 8 rotations
Nominal value tolerance	± 0.1 %
Environmental temperature	-10 ... + 60 °C
Storage temperature	-10 ... + 60 °C
EMC test	IEC 801-2/4/5, EN 55011, EN 55022

Hydrotechnik Torque sensor Electrical connector

Pin assignment	4 ... 20 mA output
	Pin 1 = signal +
	Pin 2 = – Ub / signal –
	Pin 3 = + Ub
	Pin 4 = free
	Pin 5 = shield

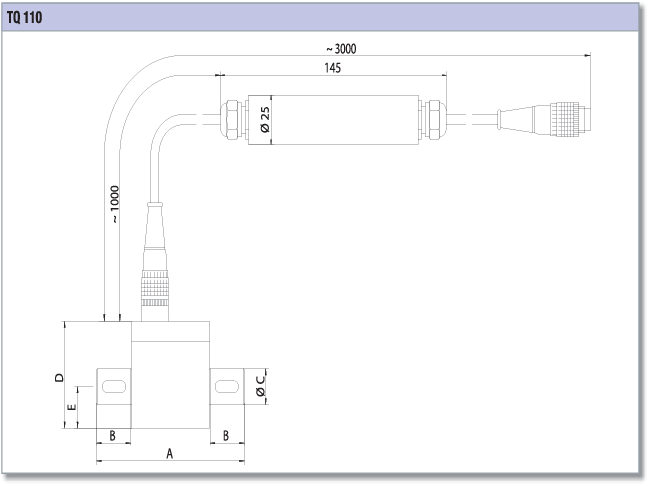

Measuring range	Max. cont. rot. speed	Spring constant	A	B	C	D	E	Weight
Nm	min-1	Nm/rad	mm	mm	mm	mm	mm	g
0 ... 50	1,500	4.82 x 103	90	20	15	54	21	380
0 ... 100	1,500	9.85 x 103	90	20	15	54	21	420
0 ... 200	1,000	2.80 x 104	95	22	18	54	21	900
0 ... 500	1,000	6.33 x 104	140	42	32	68	30	900

Hydrotechnik Torque sensororder number

Measuring range	Max. radial load	Inertia*	Order number
Nm	N	kg m²
0 ... 50	28	1.17 x 10-5	3183-21-0A.37
0 ... 100	65	1.25 x 10-6	3183-21-06.37
0 ... 200	80	9.15 x 10-5	3183-21-07.37
0 ... 500	200	9.42 x 10-5	3183-21-08.37
